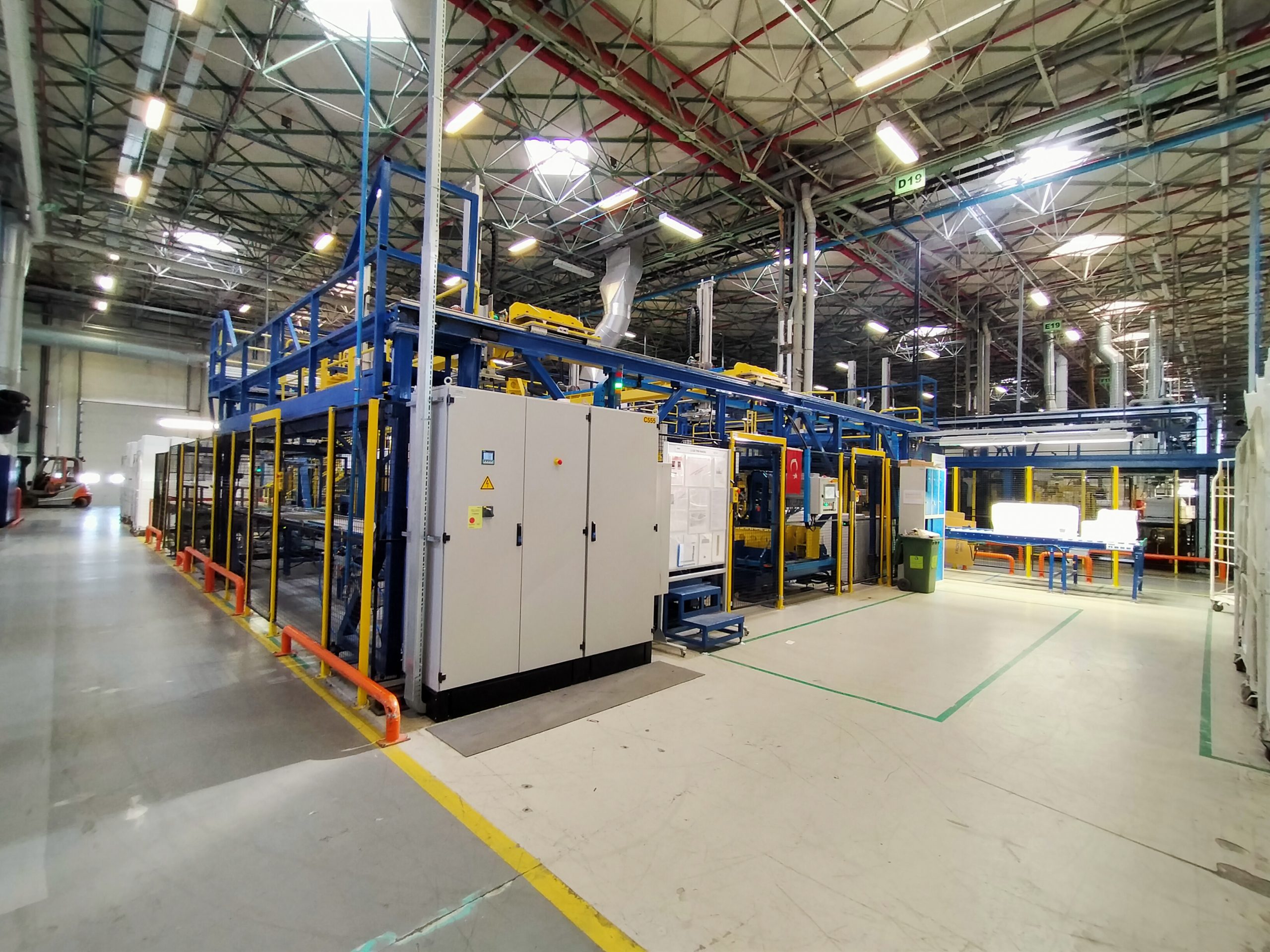

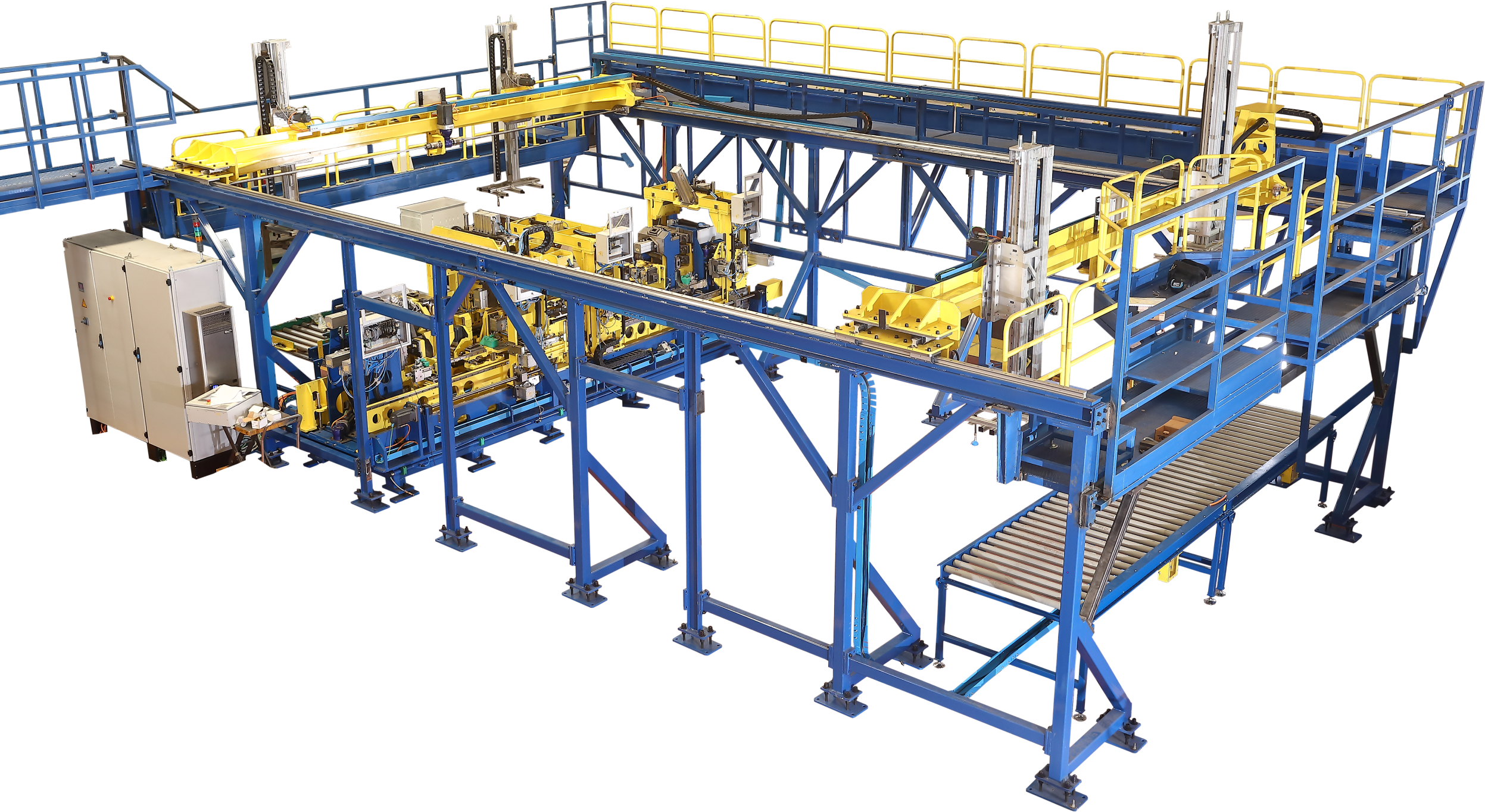

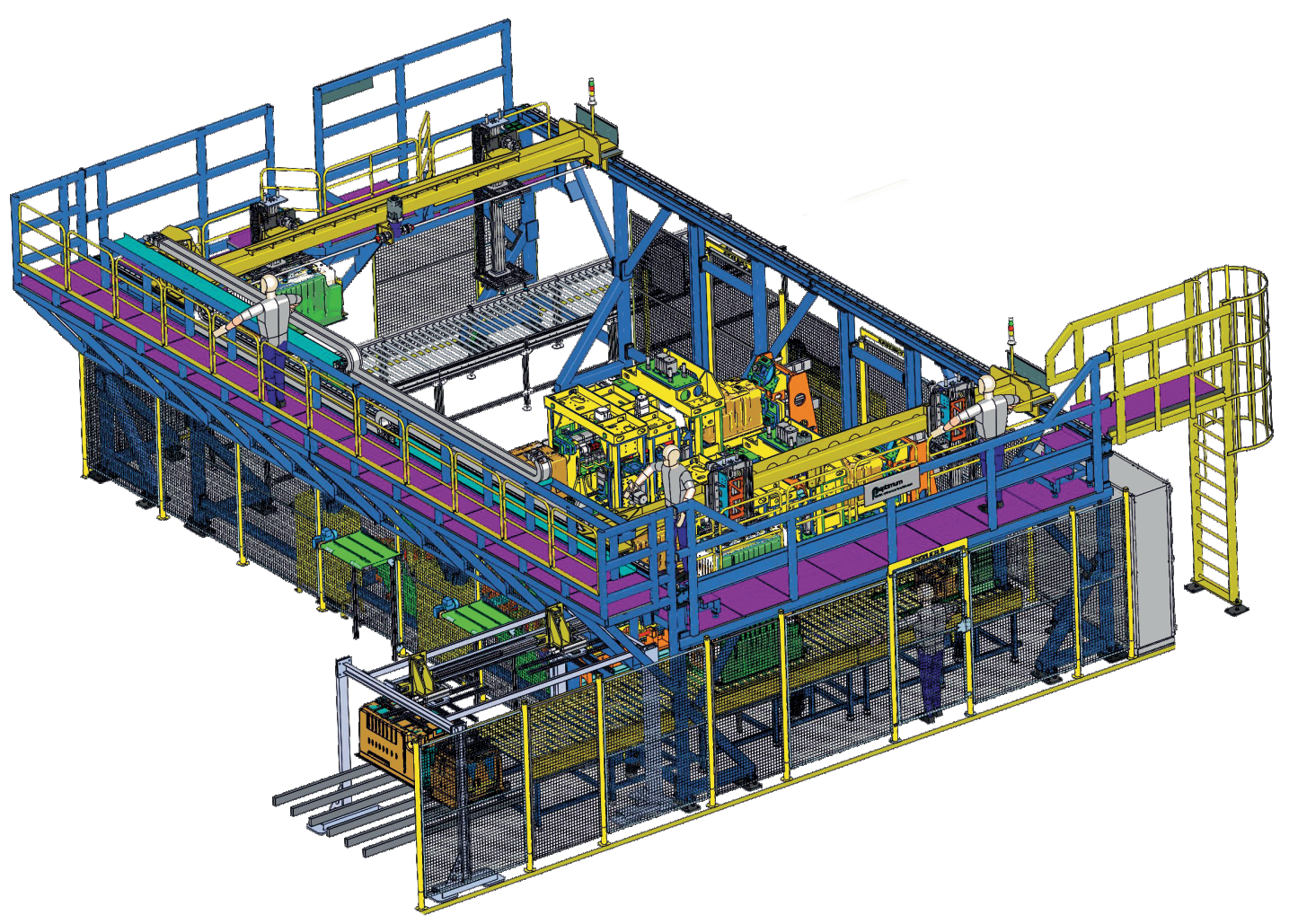

Fully automatic and multi-model trim line for refrigerator cabinet plastics, designed and produced for use in the white goods industry.

• Trim system after thermoforming,
• 3 different machine capacities,
• Automatic product loading and unloading,
• Trimming process on 30 freezer-cooler cabinets with different length-width and depths,
• System cycle time is 35 seconds,
• Fully automatic model change ( 0 – 10 seconds ),
• Dimension adjustment from the panel in transport and length axes ( positioning with servo motor ),
• Proper for Industry 4.0 system,
• Clean cutting pneumatic cutting ( 100% recovery of burrs ),
• Automatic deburring,
• Rigidt structure on one piece chassis,
• Complete stress relief,
• Baked glass-added epoxy paint.
